TM510FN plus Coating thickness gauge
10000um digital coating thickness gauge, tmteck digital coating thickness gauge, CE magnetic coating thickness gauge
مشخصات
- Measuring range :
- 0-1250µ with standard probe F1.N1 (10.00
- Probes available :
- 5 probes available for F (ferrous: on st
- Tolerance :
- F1:±(1µ+3%H) N1.±(1.5µ+3% H) H: actual
- Resolution :
- Alphanumeric with 4 large digits
Product description
● 2 Measuring modes: continuous/single
● 2 Shutdown modes: manual/automatic
●Wide measuring range with 5 probes available (next page)
●Direct testing mode and block statistics mode (APPL/BATCH)
●Can connect with printer to out of statistical values
●Dataview to connect with PC with USB 2.0 port
●500 datas can be stored
Main features
Can use various probe (F400, F1, F1/90 °, F10, N1, N400, etc.) measurement;
Three calibration methods: one point calibration, two point calibration, the basic calibration;
Display resolution: 0.1 um (measuring range of less than 100 um)
1μ m (range greater than 100 u m)
Have five statistics, data storage 500
There are two working methods: direct ways and means of group
There are two measurements: continuous measurement and a single measurement
There are two shutdown: manual and automatic shutdown shutdown
Can be set Bound: The gauge of the measured value can be automatic alarm and a number of measurements available on the histogram value analysis;
Deleted features: the gross error and error settings can be deleted;
Printing: Print Measurement measurement, statistics, gauges, histogram
A music tone in the operation carried out at any time tips
A power supply under-voltage direct function
An error function
And printers, computer communications (communications software operating environment for the Window operating system) connectivity.
Technical specifications:
Measuring range
| 0-1250µ with standard probe F1.N1 (10.000mm max) |
Probes available
| 5 probes available for F (ferrous: on steel/iron) and N (non-ferrous metals) |
Tolerance
| F1:±(1µ+3%H) N1.±(1.5µ+3% H) H: actual thickness tested |
| Resolution | Alphanumeric with 4 large digits |
| Operation language | English |
| Standards | DIN, ISO, ASTM,BS |
| Min. measuring area | F1:(standard probe) |
| Min. curvature radius | convex:3mm, concave:50mm |
Min. substrate thickness | type F: 0.5mm, type N: 50mm |
| Calibration | Zero and foil calibration |
Statistics
| Number of measurements, mean, standard deviation, maximum and minimum of 3000readings |
| Data memory | 500 measuring data |
| Limits | Adjustable with acoustic alarm |
| Interface | USB 2.0 |
| Operating temperature | 0-40℃ |
| power supply | AA size 1.5V |
| Dimensions | 125*67*31mm (main unit) |
| Weight | 345.g |

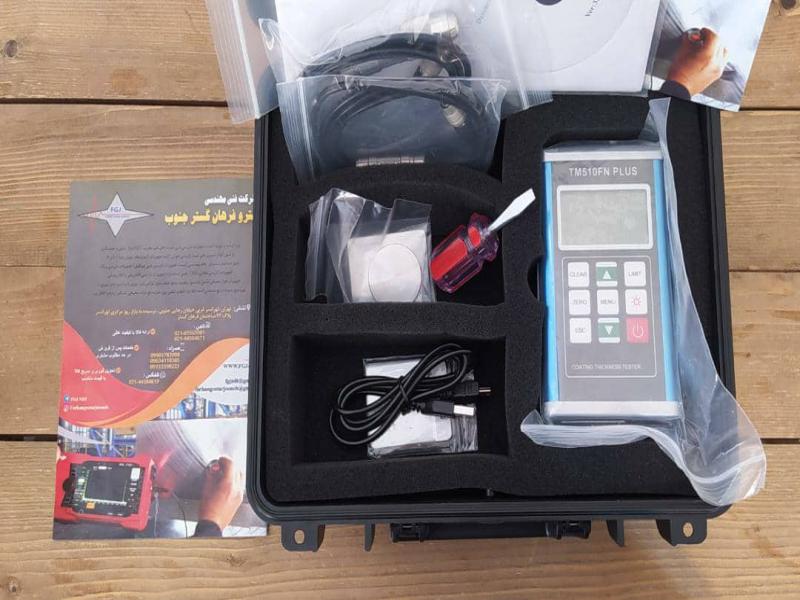

Standard delivery
| Main unit | 1 |
| Probe F1 or N1 | 1 |
| Calibration foils | 5 |
| Instruction manual | 1 |
| Cetificate | 1 |
| Warranty card | 1 |
| Carrying case | 1 |
| Communication cable | 1 |
| PC software Dataview | 1 |
Optional accessories
5 probes for different applications
Calibration foils in various thickness
Type F probe :
| Probe | F400 | F1 | F1/90° | F10 | |||
| Measuring Principle | Magnetic method | ||||||
| Measuring range(mm) | 0～400um | 0～1250 um | 0～10000 | ||||
| Min resolution(mm) | 0.1 | 0.1 | 10 | ||||
| Tolerance | One-point calibration (mm) | ±(2%H+0.7) | ±(2%H+1) | ±(2%H+10) | |||
| Two-point calibration (mm) | ±(1%H+0.7) | ±((1%H+1) | ±(1%H+10) | ||||
| Minimum radius of curvature (convex) (mm) | 1 | 1.5 | flat | 10 | |||
| Minimum measuring area(mm) | F3 | F7 | F7 | F40 | |||
| Minimum thickness of base material(mm) | 0.2 | 0.5 | 0.5 | 2 | |||
Type N probe :
| Probe | N400 | N1 | CN02 | |
| Measuring Principle | Eddy current method | |||
| Measuring range (mm) | 0～400 | 0～1250 | 10～200 | |
| Min resolution(mm) | 0.1 | 0.1 | 1 | |
| Tolerance | One-point calibration (mm) | ±(2%H+0.7) | ±(2%H+1.5) | ±(2%H+1) |
| Two-point calibration (mm) | ±(1%H+0.7) | ±(1%H+1.5) | -------- | |
| Minimum radius of curvature (convex) (mm) | 1.5 | 3 | flat | |
| Minimum measuring area(mm) | F4 | F5 | F7 | |
| Minimum thickness of base material(mm) | 0.3 | 0.3 | 0 |
