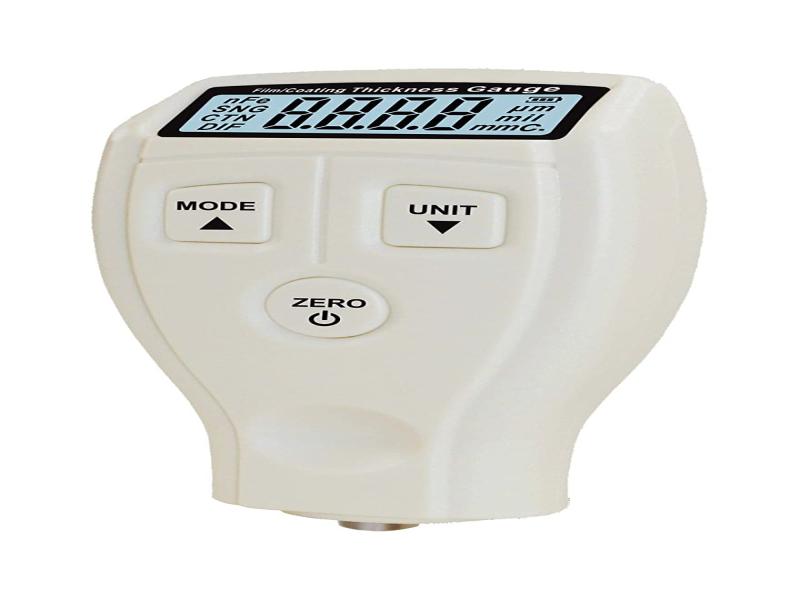

GM210 BENTECH Thickness Gauge
Benetech GM210 Film/Coating Thickness Gauge, 0-1800um/0-70.9mil Measurement ranges:0~1800μm/0~70.9mil Resolution:0.1μm/1μm/1mil,Measurment error:±(3%H+1μm)
مشخصات
- Brand Name :
- BENTECH
- Resolution :
- 0.1μm/1μm/1mil
- Measuring range :
- 0-1800um/0-70.9mil
- Measurment error :
- ±(3%H+1μm)
Product description
Benetech GM210 Film/Coating
Thickness Gauge,
0-1800um/0-70.9mil
- Measurement ranges:0~1800μm/0~70.9mil
- Resolution:0.1μm/1μm/1mil
- Measurment error:±(3%H+1μm)
- Min.diameter of substrate:Φ12mm
- Min.thichness of substrate:0.5mm
- Min.curvature radius of convex substrate:2mm
- Min.curvature radius of concave substrate:11mm
- Power supply:2*1.5V AAA batteries
- Operating temperature range 0~40℃
- Operating humidity range:10~95%RH
- Overall dimensions:61.98*30.57*104.99mm
- Weight:63.98g
- Standard Quantity Per Carton:20PCS
- Standard Carton Size:65.9*44*28.9cm
