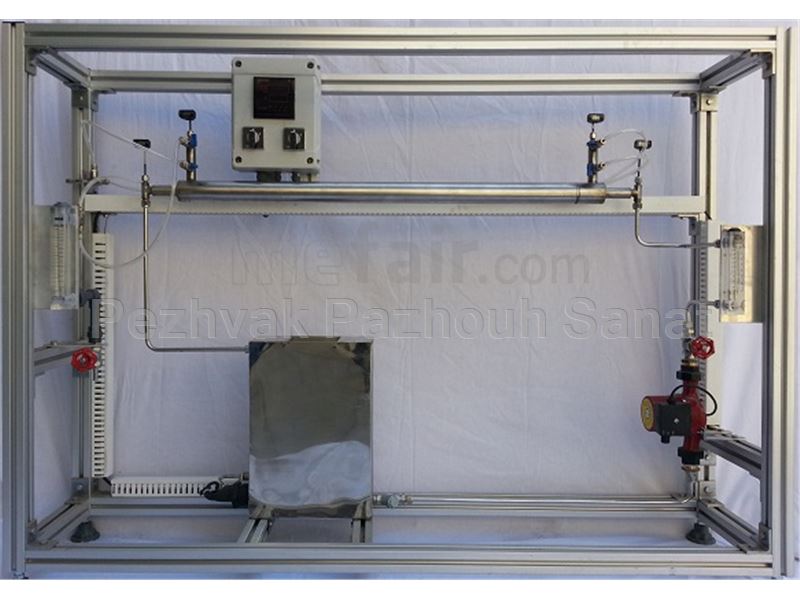

Concentric Tube Heat Exchanger Unit
This unit is suitable for chemical engineering and mechanical engineering heat transfer laboratory. The exchanger is designed to evaluate heat transfer between warm and cold water in a concentric exchanger.
مشخصات
- Exchanger Type :
- Concentric
- # Therometer :
- 4
Product description
Learning Objectives / Experiments:
- Evaluation of co-current and counter-current flow influence on transferred heat and twin tube exchanger behavior
- Evaluation of warm water temperature changing influence
- Evaluation of flow changing influence
Unit Components:
- Steel concentric tube heat exchanger
- Two Rotameters for warm and cold water flow indication
- Circulation pump
- Stainless Steel warm water storage tank
- Four control valves for warm and cold water flow controlling
- Exchanger and warm water storage inlet and outlet temperature indicators
- Piping circuits with the ability to make co-current and counter-current flows in the exchanger
- Aluminum profile casing
The link of this unit introduction in the company website is:
http://ppsedu.com/en/index.php?page=115&parent=76
