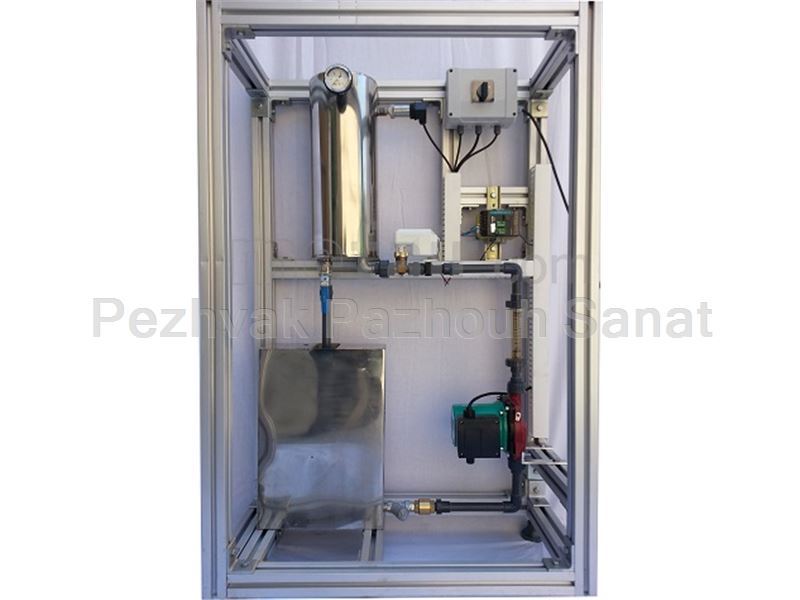

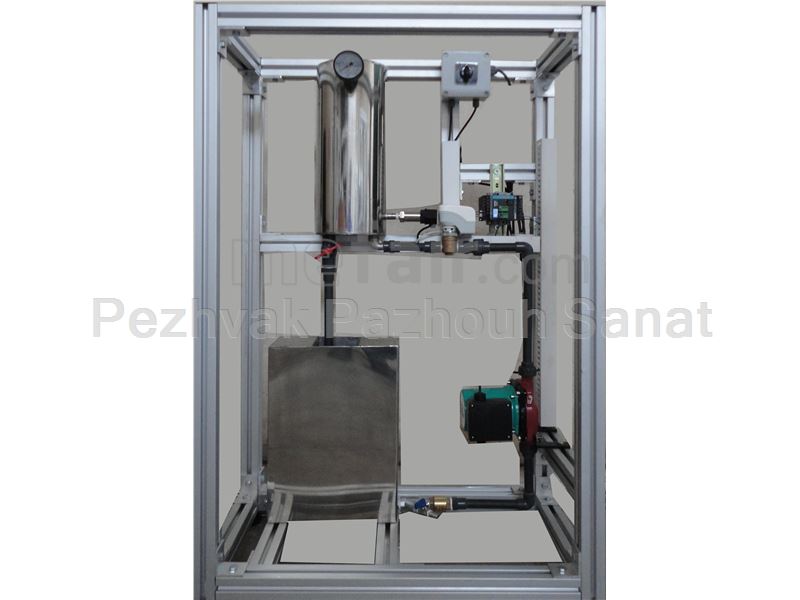

Automatic Pressure Control Unit
Pressure Control Unit is designed to control the pressure in the steel tank. The pressure can be read by on-tank gauge and also from the software. This unit controls the pressure by PID method.
مشخصات
- PLC :
- Industrial
- Software :
- LabView
- Pressure Range :
- 0 to 1 bar
- Tanks Material :
- Stainless Steel
Product description
Learning Objectives / Experiments:
- Study of air pressure control with P, PI and PID Controllers
- Training of different systems simulating with common methosd
Unit Components:
- Industrial control valve
- PLC unit to connet the unit to computer
- “Labview” software with ability to sketch flow and control valve graphs
- Stainless Steel pressure tank
- Accurate industrial pressure sensor
- Steel valve for changing the system resistance
- Stainless Steel water storage tank
- Pressure guage for indicating air pressure in the tank
- Industrial pump
- Steel water storage discharge valve
- Aluminum profile casing
The link of this unit introduction in the company website is:
http://ppsedu.com/en/index.php?page=87&parent=76
