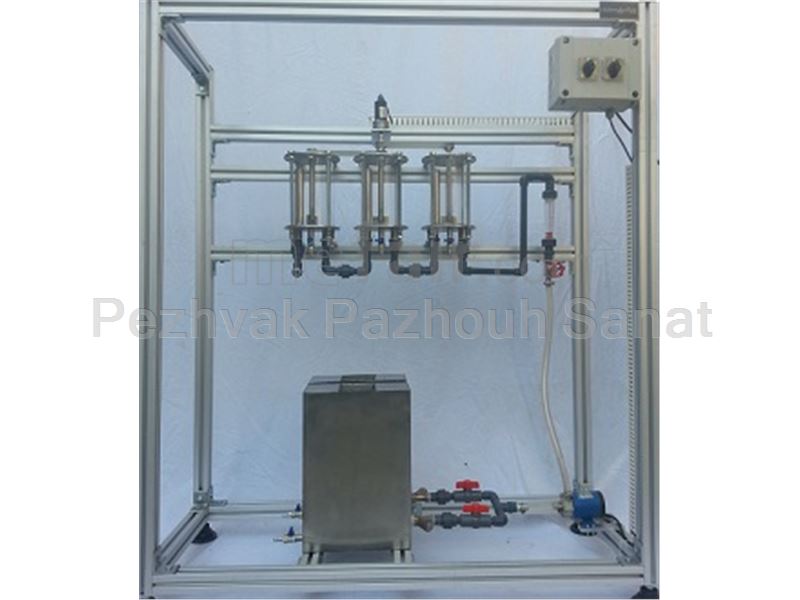

Stirred Tanks Unit
Stirred Tanks Unit is designed for observing and studying electrical conductivity change upon feed conductivity change in the tanks. Tanks are made of stainless steel and German glass. This unit is provided with special software and portable conductivity meter.
مشخصات
- #Stirred Tanks :
- 2
- Sensor :
- Portable Conductivity meter
- Software :
- Lutron
- Agitator :
- Yes
Product description
Learning Objectives / Experiments:
- Study of stirred tank system with step input behavior
- Study of stirred tank system with and without agitator
- Equipped by electrical conductivity sensor
Unit Components:

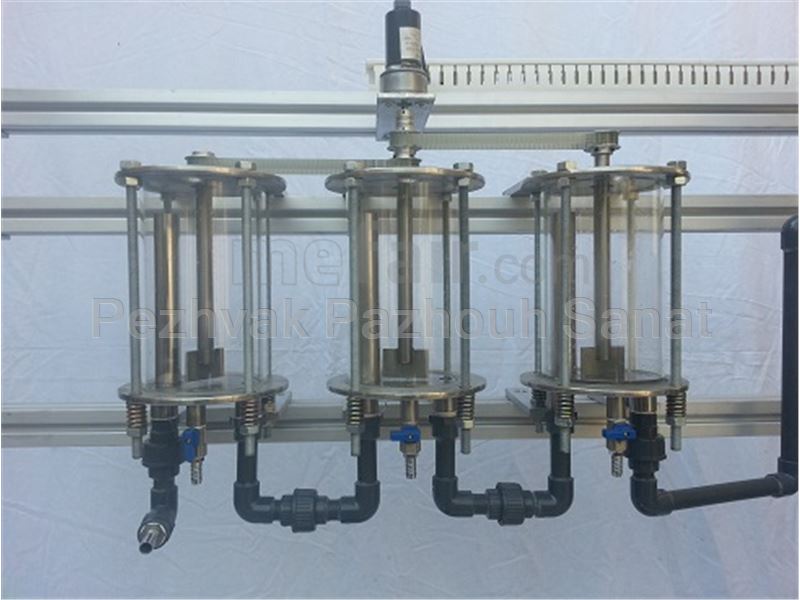

- Three glass made stirred tanks in series
- Three agitators
- One centrifugal pump
- Stopcock for feed flow control
- Flow regulator valve
- Two Stainless Steel fluid tanks
- Electrical Conductivity sensor with process monitoring software
