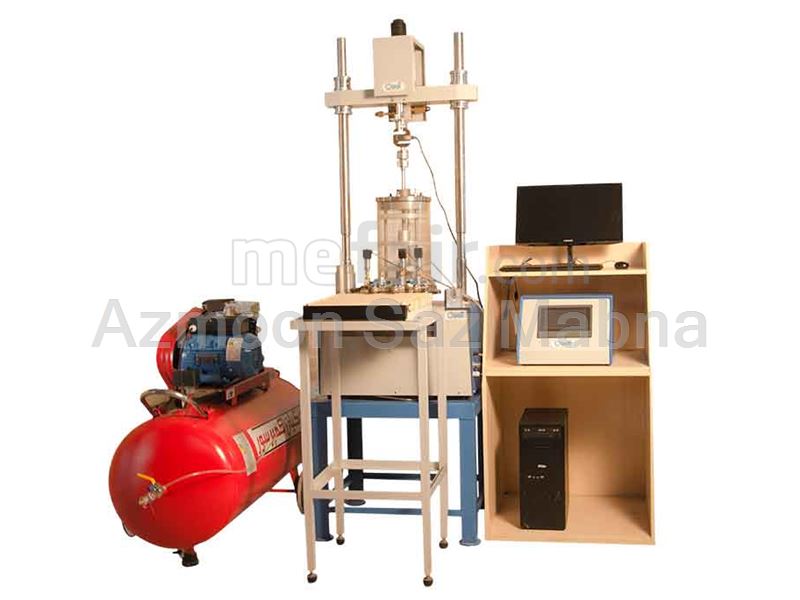

Cyclic & Monotonic Triaxial Test System
Studies and research of under load soil behavior divided in two different categories: dynamic loads & static loads. In dynamic load, scientist studies behavior of structures under cyclic (dynamic) loads like earthquake. Cyclic and Monotonic Triaxial Test System simulate same conditions.
Product description
Technical Specification
- Capacity: 25 kN
- 20 kN load cell with the resolution of 10 N
- Pneumatic cyclic loading and Monotonic loading
- ±5 mm displacement amplitude with the frequency range of 0.1-10 Hz.
- 50 mm stroke LVDT sensors with the resolution of 0.01 mm
- 10 bar pressure transmitter
- Isotropic and anisotropic consolidation
- 0.015 – 5 mm/min monotonic uniform loading rate
- Vacuum pump for De-airing of sands and soils
- 70, 50, 38 mm membrane
- 70, 50, 38 mm bronze made filter
- Volume change measurement unit with the resolution of 0.1 cc
- 250-liter capacity 10 bar air compressor
- 8 channels data logger for static and dynamic measurement
- Computer software in LabVIEW environment

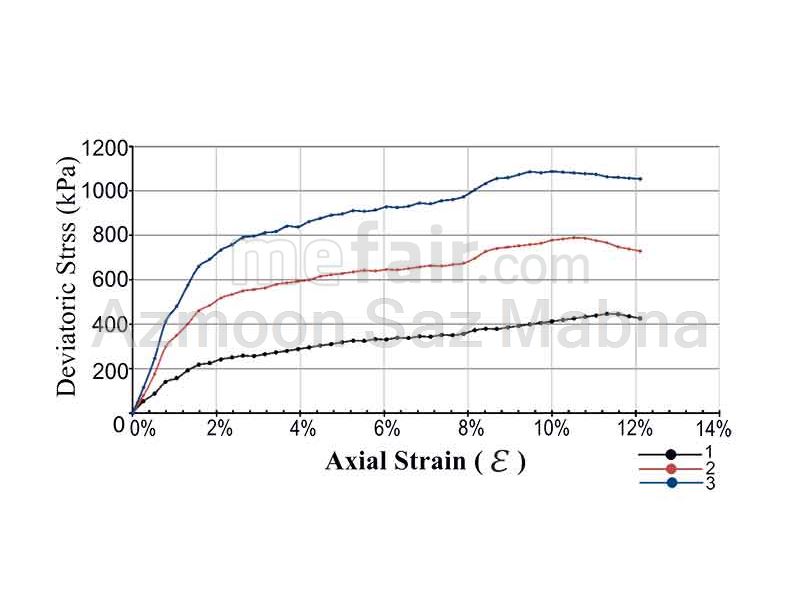

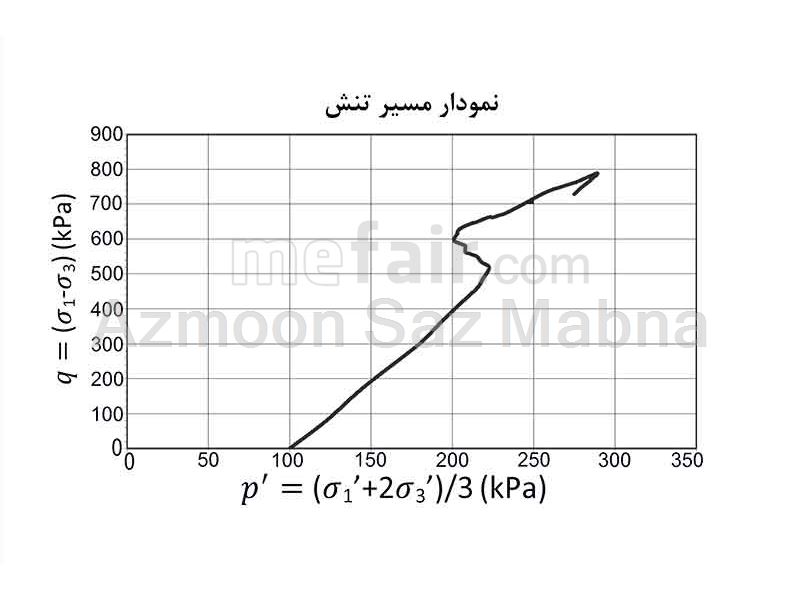

- Plot stress-strain, direction-stress, acceleration-time, position-time, velocity-time graphs
- Feather to Control Dynamic Load
- Irregular dynamic loading like earthquake
- Ability to import earthquake data in excel files
- Dynamic loading with limited stroke
- 0.1 – 10 Hz dynamic load frequency
- Combination of cyclic and monotonic loading
- Automatic control of side and cell pressure
Base on customer order, this device could manufacture for testing 100 mm and 150 mm diameter specimen.
