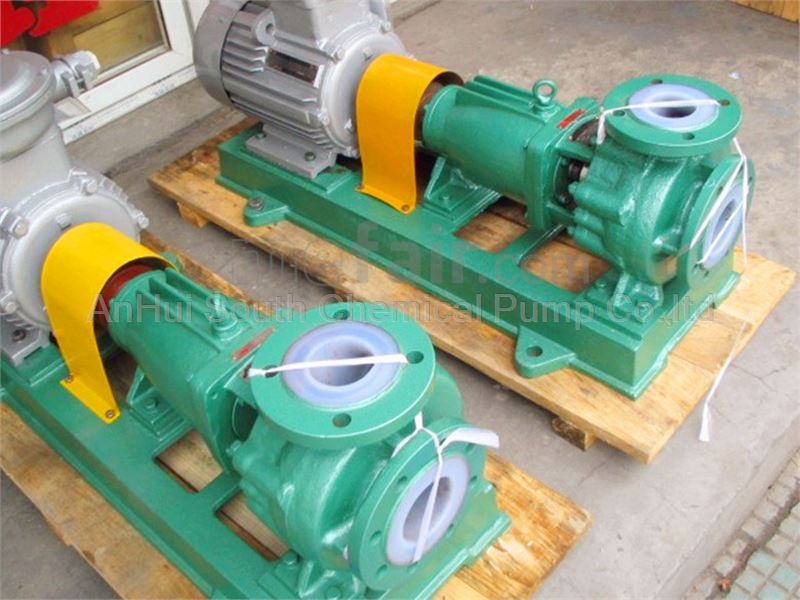

IHF PTFE Centrifugal Pump
مشخصات
- Voltage :
- 380V or 415 V
- Motor :
- Standard Motor or Flame Proof Motor
Product description
Commodity: IHF Chemical Centrifugal Pump
Product Introduction
IHF centrifugal pump uses metal shell lined with poly F46; Pump cover, impeller and shaft are metal inserts the overall sintering outsourcing fluorine plastic is extruded, seal with externally mounted bellows mechanical seal: Static ring made of 99.9 % (alumina ceramic or silicon nitride), rotating ring with PTFE filler material. It features superior performance and reliable corrosion resistant seal. The pumps are suitable for transfer to any concentration of sulfuric acid, hydrochloric acid, acetic acid, nitric acid, aqua regia, alkali, strong oxidizer, organic solvent, reducing agent and other harsh conditions of strong corrosive medium, is the world's one of the latest corrosion-resistant equipment. Its advantage is reasonable structure, advanced resistant to corrosion, seal tightly and reliable performance, stable, low noise, long life.
Model No: IHF80-65-160F
Flow Capacity: 60 m3/h
Diameter Inlet: 80 mm
Diameter Outlet: 65 mm
Head: 28 m
Rotating Speed: 2900 r/min or 3600r /min
Motor classiication: Standard Motor or Explosion Motor ( flame motor )
Voltage: 380V or 415 V
Frequency: 50 hz or 60 hz
More details can be negotiated.
