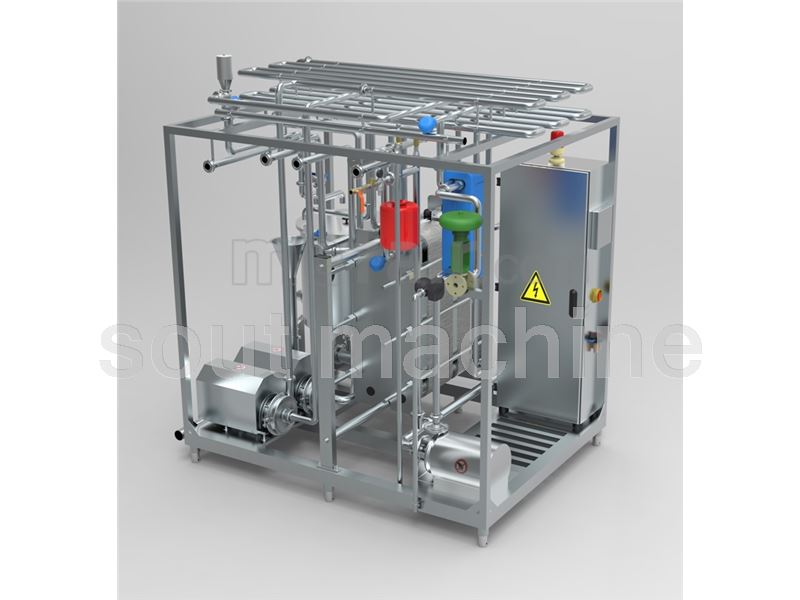

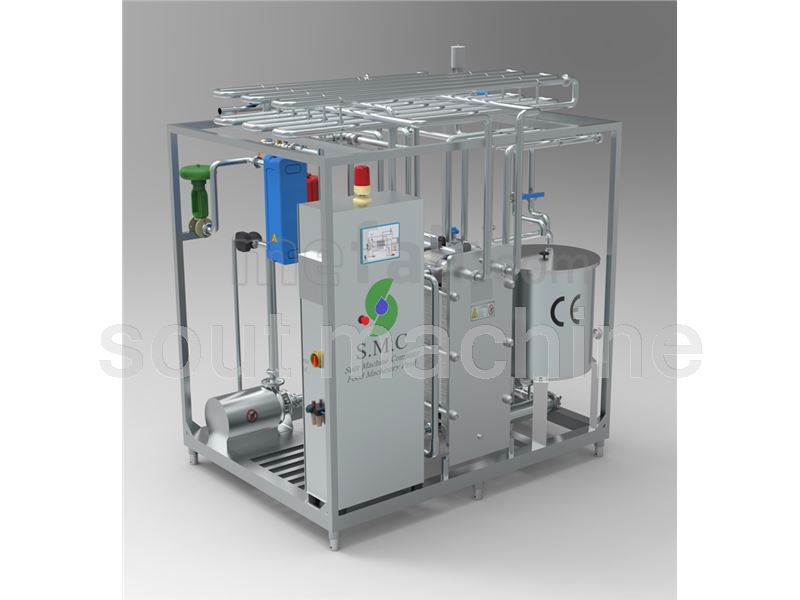

pasteurizer
These type Of the Pasteurizer is suitable for: milk, juice, tea drinks, milk drinks, yogurt, ketchup, sauce, beer, wine, ice cream, egg products, Honey
Product description
Packaging & Delivery
| Packaging Detail: | Standard Wooden Case or According to Customers' Requirements |
| Delivery Detail: | 45 working day |
Min. Order: 1 unit
Technical Spec.
1. Full Automatic PLC Controller
2. Steam Valve with PID control
3. High energy recovery
4. Long continuous operating
5. self-cleaning CIP
6. low operating cost
7. Easy to install, inspection and maintenance
8. User Friendly
9. Full Operation Report (alarm, message, temp. recorder and product report). Reports can be Stored on Memory flash
10. Without unfavorable Heat influence on product
11. Preparation Time(before start product) is 300 Sec.
Technical Parameter for milk
Process parameters: 3-8°C → 45-50°C → 58-63°C → 72-78°C → 4°C
Ice water Temp. ≤ 3°C
Ice water Pressure: 4 bar
Steam Pressure: 4 bar
Air Pressure: 6 bar
Normal water Volume: according to machine
| Row | Model | Capacity (t/h) | Steam Consumption (kg/h) | Total Power (kw) | Tube Diameter (mm) | Dimention (m) |
| 1 | DL-MP1P/A | 1 | 100 | 3.0 | 25 | |
| 2 | DL-MP2P/A | 2 | 200 | 3.0 | 25 | |
| 3 | DL-MP3P/A | 3 | 300 | 3.7 | 38 | 2*1.5*2.2 |
| 4 | DL-MP5P/A | 5 | 450 | 4.4 | 38 | 2*1.5*2.2 |
| 5 | DL-MP10P/A | 10 | 900 | 7.0 | 51 | |
| 6 | DL-MP15P/A | 15 | 1400 | 7.0 | 51 | |
| 7 | DL-MP20P/A | 20 | 1900 | 14.0 | 51 |
Certifications
CE approved
