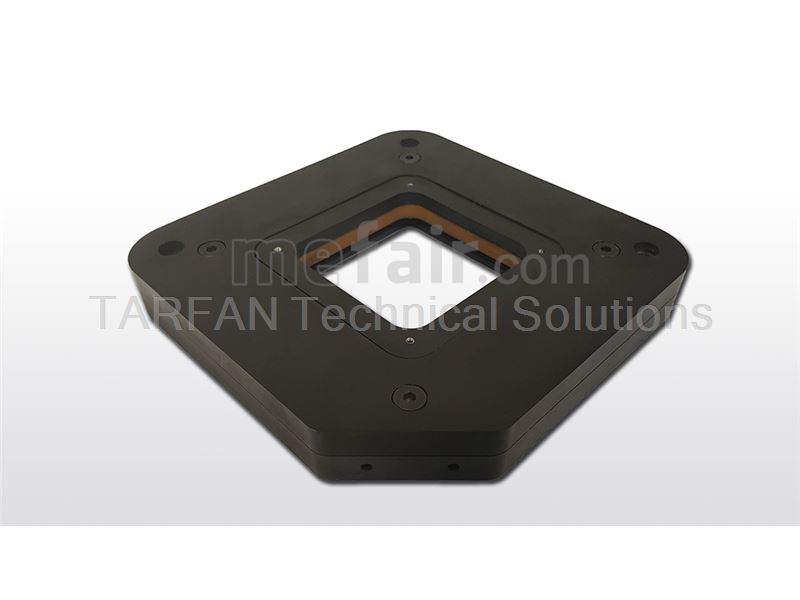

XY Piazo Stage
Piezo stage gives us the ability of scanning a micro size plane with nano meter resolution. This is the key technology for developing scanning microscope, precision optics, optical tweezers, image stabilization systems and micro electronic diagnostics stations.
مشخصات
- Resolution :
- 5 nm
- Stroke :
- 80~150 µm
- Axis :
- Dual Axis (X-Y)
Product description
Tarfand Piezo XY Stage gives us the ability of scanning a micro size plane with nanometer resolution. This is the key technology for developing scanning microscope, precision optics, optical tweezer, image stabilization systems and micro electronic diagnostics stations. Indipendent and symmetric behaviour of the two axes is one of the most important features of this product.
Specifications:
Stroke up to 200 microns.
Resolution: 5 nanometers
Natural frequency up to 500 Hz.
Custom design based on application.
Piezo-driven flexure-based design.
Optional Position feedback sensor.
Optional z-axis piston motion.
Clean room and vacuum compatible.
